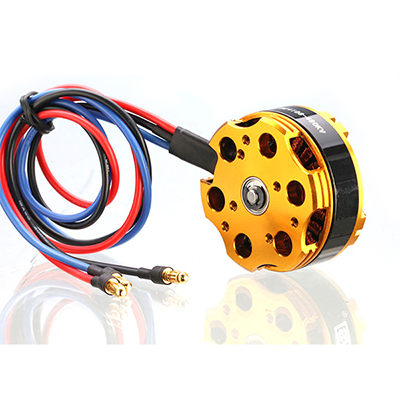

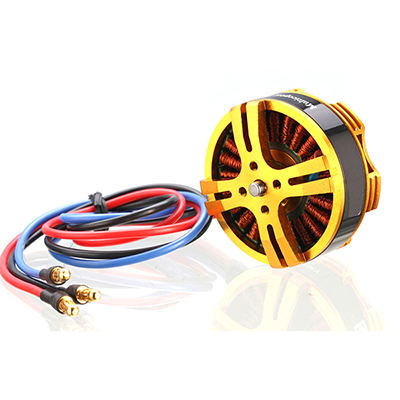

BE4108 4108 380KV 480KV 580KV 720KV Brushless Motor
Specifications:
Battery: 3-6s Lipo
Specifications:
KV..............................................................................................................380
Configu ration....................................................................................NP
Stator Diameter....................................................................................41mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm

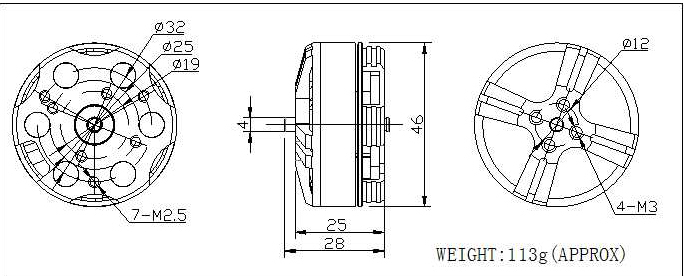

Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
Weight (g)...................................................................................................113g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................17.2A
Max Continuous Power(W)...........................................................381W
internal resistance..............................................................................0.193ohm
Specifications:
KV..............................................................................................................480
Configu ration....................................................................................NP
Stator Diameter....................................................................................41mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
Weight (g)...................................................................................................113g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................27A
Max Continuous Power(W)...........................................................599W
internal resistance..............................................................................0.125ohm
Specifications:
KV..............................................................................................................580
Configu ration....................................................................................NP
Stator Diameter....................................................................................41mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
Weight (g)...................................................................................................113g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................37A
Max Continuous Power(W)...........................................................821W
internal resistance..............................................................................0.098ohm
Specifications:
KV..............................................................................................................720
Configu ration....................................................................................NP
Stator Diameter....................................................................................41mm
Stator Length..........................................................................................8mm
Shaft Diameter.......................................................................................4.0mm
Motor Dimensions(Dia.*Len)...............................................Φ46x25mm
Weight (g)...................................................................................................113g
No.of Cells(Lipo).....................................................................................3-6S
Max Continuous current(A)............................................................30A
Max Continuous Power(W)...........................................................666W
internal resistance..............................................................................0.055ohm
